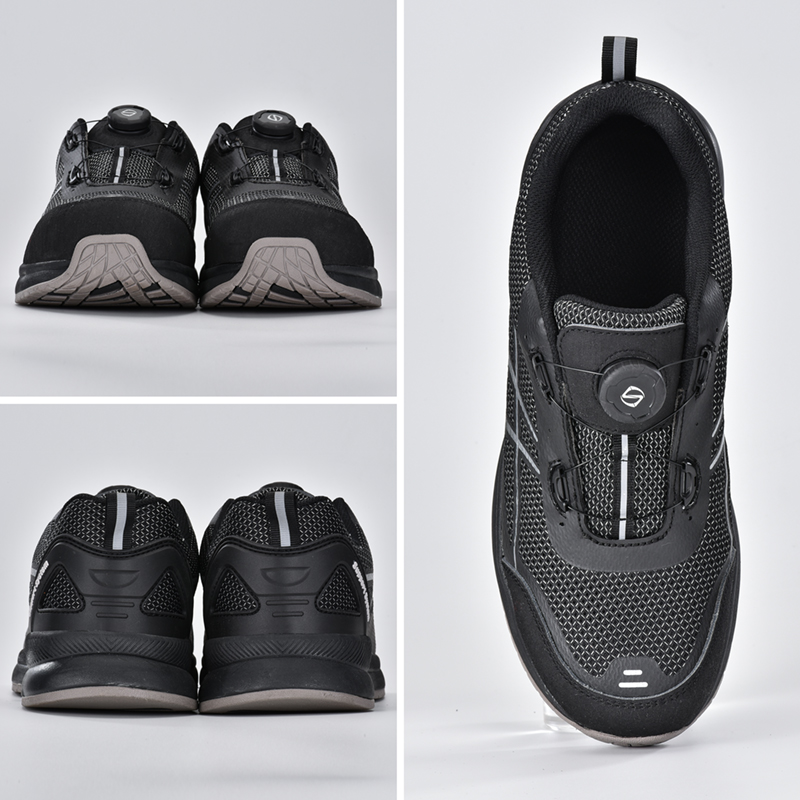

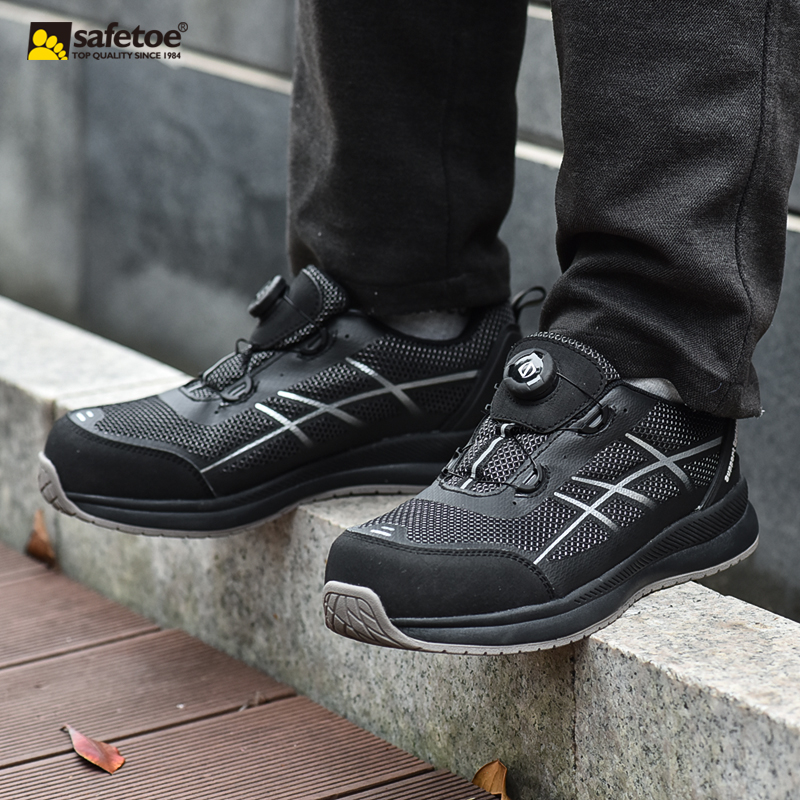

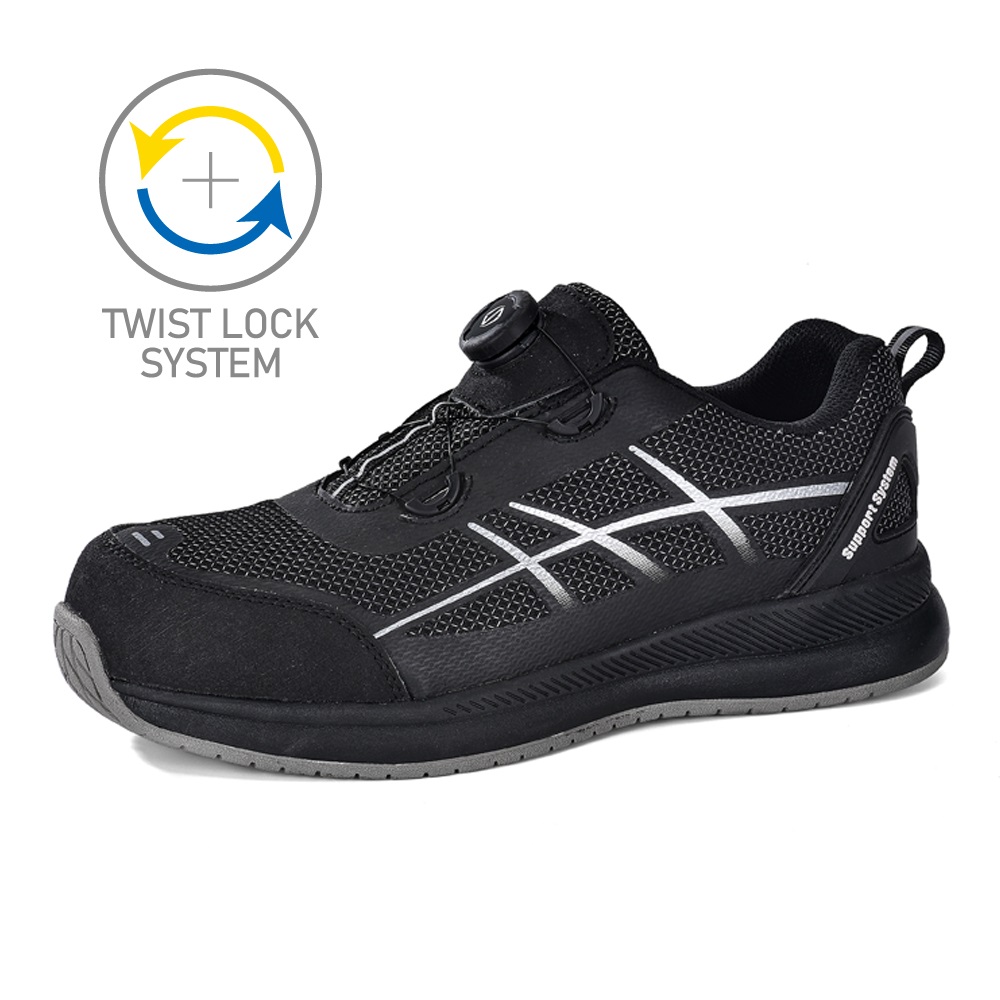

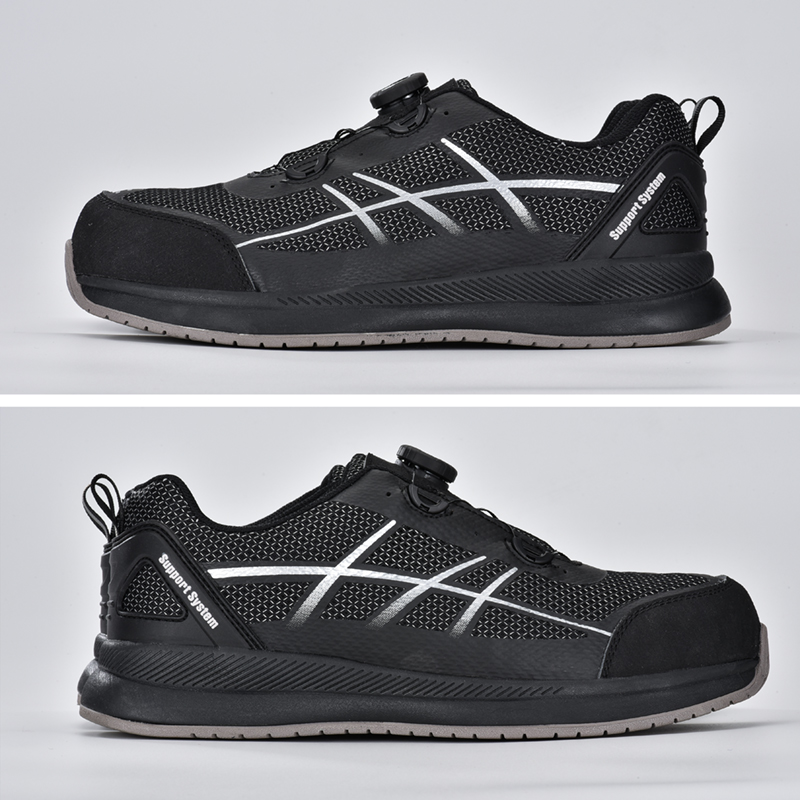

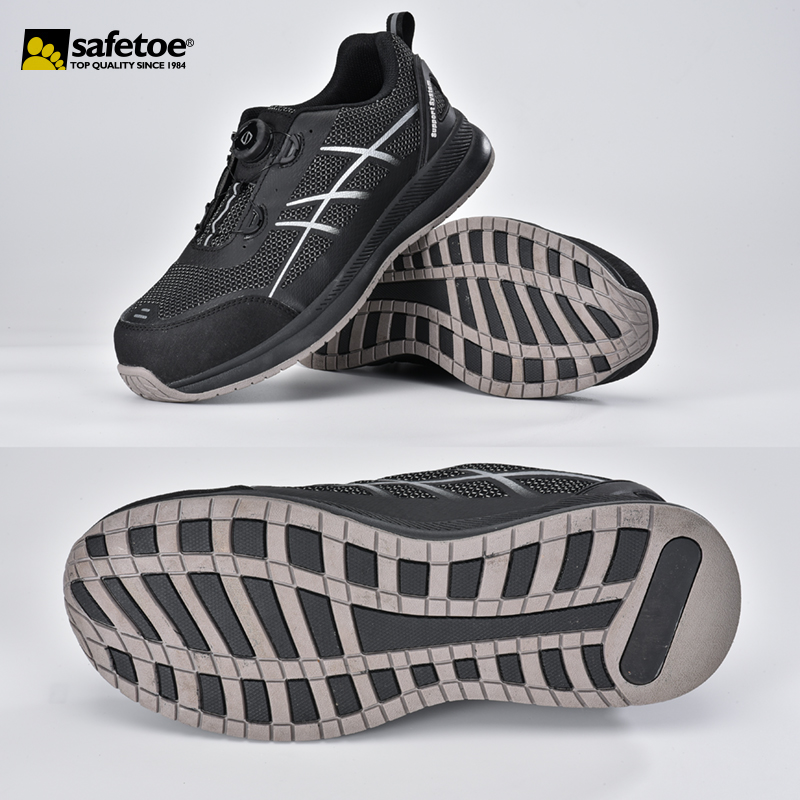

L-7389 TLS
Safetoe
| Rozmiar: | |
|---|---|
| Stan dostępności: | |
| Ilość: | |
| 1. Cholewka : | Sanvlar-tech Fly Knitting Nylonowa tkanina |
| 2. Podszewka: | Oddychająca siatka Sandwich Air |
| 3. Wkładka: | Wygodna siatka powlekana EVA |
| 4. Zewnętrzna podeszwa : | Podeszwa zewnętrzna z pianki EVA/gumy |

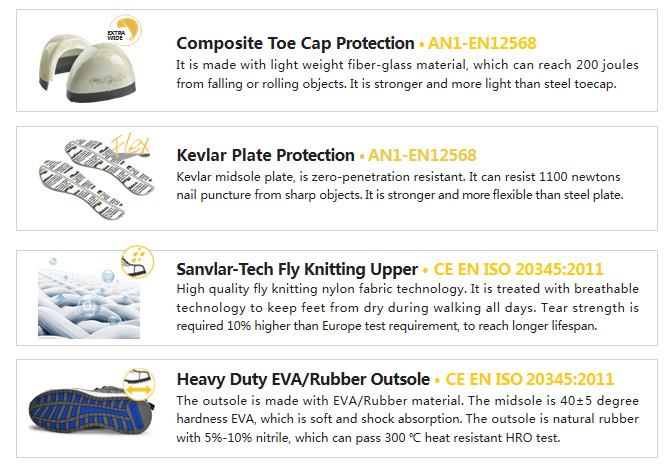

| 5. Podnosek : | Kompozytowy podnosek |
| 6. Penetracja: | Podeszwa środkowa z kevlaru |
| 7. Rozmiar: | UE 37-47#, Wielka Brytania 3-13#, USA 4-14# |
| 8. Standardowy: | CE EN ISO 20345:2011 SBP SRC |
| 9. Aplikacja : | Budownictwo, logistyka, mechanika, montaż okularów, warsztat fabryczny, garaż itp |
| 1. Cholewka : | Sanvlar-tech Fly Knitting Nylonowa tkanina |
| 2. Podszewka: | Oddychająca siatka Sandwich Air |
| 3. Wkładka: | Wygodna siatka powlekana EVA |
| 4. Zewnętrzna podeszwa : | Podeszwa zewnętrzna z pianki EVA/gumy |
| 5. Podnosek : | Kompozytowy podnosek |
| 6. Penetracja: | Podeszwa środkowa z kevlaru |
| 7. Rozmiar: | UE 37-47#, Wielka Brytania 3-13#, USA 4-14# |
| 8. Standardowy: | CE EN ISO 20345:2011 SBP SRC |
| 9. Aplikacja : | Budownictwo, logistyka, mechanika, montaż okularów, warsztat fabryczny, garaż itp |
| √ Upper, Lining & Bonding Strength Test Result | Result |
| Leather Tear Strength ≥ | 120.0 Newtons |
| Leather Tensile Properties ≥ | 15.0 N/mm² |
| Lining Tear Strength ≥ | 15.0 N/mm |
| Bonding Strength ≥ | 4.0 N/mm |
| √ Protection with Composite Toecap (200 Joules) | Result |
| Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
| √ Penetration Resistance (1100 N) | Result |
| Penetration Resistance Force ≥ 1100 N | PASS |
| √ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
| Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
| √ Protection With Anti-Static | Result |
| Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute | PASS |
| Standards : ENISO 20344:2011(5.10) Dry Humility (30±5) & Wet Humility (85±5) | |
| √ Protection Resistant to Fuel Oil | Result |
| Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
| Standards : ENISO 20344:2011(8.6.1) |
| √ Sole Bonding Strength Test | |
| • EN ISO 20344:2011, 5.2 (Between Upper & Sole) | |
| • Average Test Result 5.8±5 (N/mm) |
| √ Upper, Lining & Bonding Strength Test Result | Result |
| Leather Tear Strength ≥ | 120.0 Newtons |
| Leather Tensile Properties ≥ | 15.0 N/mm² |
| Lining Tear Strength ≥ | 15.0 N/mm |
| Bonding Strength ≥ | 4.0 N/mm |
| √ Protection with Composite Toecap (200 Joules) | Result |
| Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
| √ Penetration Resistance (1100 N) | Result |
| Penetration Resistance Force ≥ 1100 N | PASS |
| √ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
| Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
| √ Protection With Anti-Static | Result |
| Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute | PASS |
| Standards : ENISO 20344:2011(5.10) Dry Humility (30±5) & Wet Humility (85±5) | |
| √ Protection Resistant to Fuel Oil | Result |
| Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
| Standards : ENISO 20344:2011(8.6.1) |
| √ Sole Bonding Strength Test | |
| • EN ISO 20344:2011, 5.2 (Between Upper & Sole) | |
| • Average Test Result 5.8±5 (N/mm) |
| SAFETOE Standard Package Instruction (Average 42# for Reference) | |
| Shoes Weight : 1.0-1.1 KGS /Pair | Carton Weight : 11-12 KGS /Carton |
| 1 Pair / Color Box , Dimensions : 32×21×12CM | 10 Pair / Carton , Dimensions : 62×43×33CM |
User Instructions:
1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.
2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.
4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.
5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
| SAFETOE Standard Package Instruction (Average 42# for Reference) | |
| Shoes Weight : 1.0-1.1 KGS /Pair | Carton Weight : 11-12 KGS /Carton |
| 1 Pair / Color Box , Dimensions : 32×21×12CM | 10 Pair / Carton , Dimensions : 62×43×33CM |
User Instructions:
1.) RECOMMENDED TO USE : Construction, Logistics, Mechanics, Glasses Installation, Factory Workshop, Farming, Garden, Garage etc.
2.) LIMITATION TO USE: It is very important that footwear selected must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3.) FITTING & SIZE: All footwear are marked with standard size on tongue label. Some are with different size comparation, such as EU size, UK size, US size etc. Please wear footwear in a suitable size Footwear which are too loose or too tight may not provide optimum level of protection.
4.) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions and in clean, covered and ventilated premises.
5.) CLEANING: Clean footwear regularly by high quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
